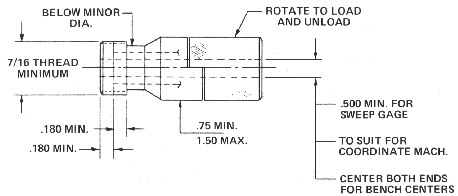

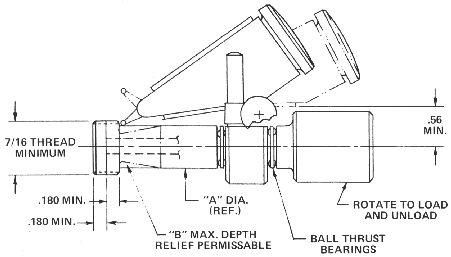

Design Guide Specify By Type of Arbor Thread Dia. A B (MAX.) 5/16 & 3/8 .37 .030 7/16 .37 .025 1/2 .40 .040 9/16 .46 .055 5/8 .52 .070 11/16 .58 .085 Thread Dia. A B (Max.) 3/4 .62 .095 13/16 .70 .095 7/8 .73 .095 15/16 to 1 - 7/16 .75 Not Req. 1 - 1/2 to 2 1.00 Not Req. Designers Should Practice Good Judgement to Keep Proportions in Mind
