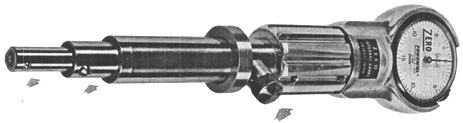

This gage is used to check requirements of any two part features on a common centerline.

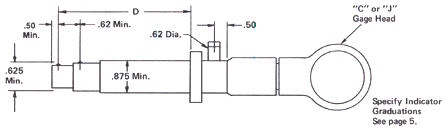

Can be drawn as a "V" or "V-1" style of spindle with limiting dimensions as shown.

A pressure pad can be incorporated when pilot diameter exceeds 1.240 or a collet when pilot exceeds .875.

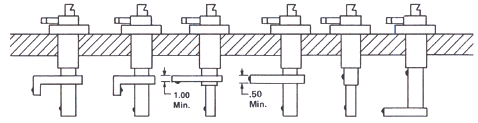

The possibilities for the application of the DIAL-A-PROBE gage are only limited by the imagination.

• REAR OR FRONT PILOT

• DUAL CHECKS

• LONG DEEP HOLES

• HOLES-IN-LINE

• LARGE C'BORE

• AROUND OBSTRUCTIONS

• OUTSIDE & INSIDE

• LONG REACH SQUARENESS

• MANY OTHER CASES
