home : products : roller slides: Design Guide (Zero Light Duty Roller Slide)

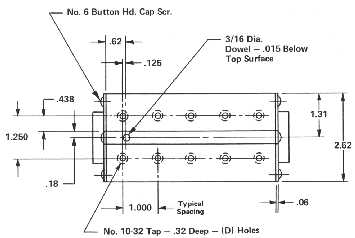

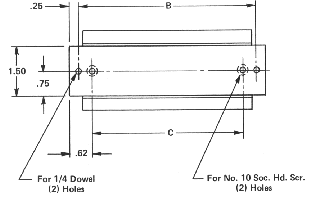

Design Guide (Zero Light Duty Roller Slide) Model No. A B C D E F Max. Load BST - 1 3.62 3.125 2.375 6 3 .50 25 Lbs. BST - 2 4.62 4.125 3.375 8 4 1.00 40 Lbs. BST - 3 5.62 5.125 4.375 10 5 1.50 60 Lbs. BST - 4 6.62 6.125 5.375 12 6 2.00 75 Lbs. Material Hardened tool Steel Designers Use BG - 6 - T tracing Templates     Need an AutoCAD template? Click here for our templates section.
