home : products : roller slides: Design Guide (Zero Roller Slide Model BST - 6)

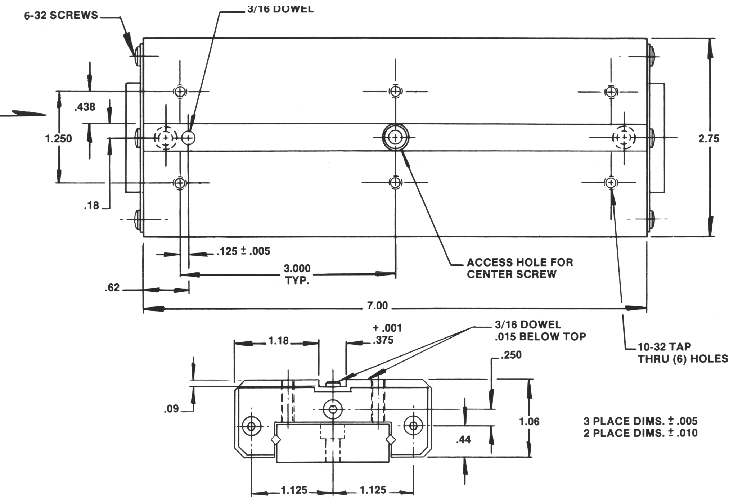

Design Guide (Zero Roller Slide Model BST - 6) Note: Slides are Shown in the Mean Position. Movement is One-Half the Half the Travel in Either Direction. Max. Mounting Load 75 Lbs. Need an AutoCAD template? Click here for our templates section.
