Depth Gages

Zero Model "BGL" (Long Bar Blank)

Material: Pin High Grade Tool Steel. Heat Treat Pin Rockwell "C" 62-64. Bar Machine Steel, .030 Minimum Case Depth. Heat Treat Bar Rockwell "C" 60-62.

Ordering Instructions

Select Bar That Suits Part Condition
Select Pin Location
Example:

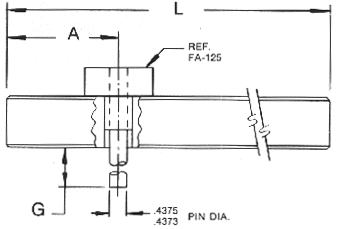

L Length Required = 18
A Pin Location =A - 5
G Pin Gage Length = 5.0

Specify Zero BGL 18 A5 G5 Gage Blank

Bar Length BGL	Pins Locations From Bar End
	A - 1	A - 2	A - 3	A - 4	A - 5	A - 6	A - 7	A - 8
	1.31	2.62	3.94	5.25	6.56	7.88	9.18	10.50
Zero Model Numbers
13.0	BGL 13 A1	BGL 13 A2	BGL 13 A3	BGL 13 A4	BGL 13 A5
16.0	BGL 16 A1	BGL 16 A2	BGL 16 A3	BGL 16 A4	BGL 16 A5	BGL 16 A6
18.0	BGL 18 A1	BGL 18 A2	BGL 18 A3	BGL 18 A4	BGL 18 A5	BGL 18 A6	BGL 18 A7
21.0	BGL 21 A1	BGL 21 A2	BGL 21 A3	BGL 21 A4	BGL 21 A5	BGL 21 A6	BGL 21 A7	BGL 21 A8

Pin Length "G"
3.0 Stocked
5.0 Available
7.0 Available
Spec. Available

For Alterations Also Specify Min/Max. Gage Depths and Chamfer if Required.

Typical Applications
Hub Dia. 3.00 In. Check Depth of Flange .500 - .515 Select Zero BGL 21 A7 G5
Part O.D. 20.0 In Check Depth of Inside Face 3.750 - 3.780 Select Zero BGL 21 A7 G5
Groove Depth Check
C'Sink Depth Check
