Depth Gages

Zero Model "SB" (Small Bar Blank)

Top and bottom of gage bar ground flat, parallel and square with pin hole. Material - bar and pin tool steel, Rockwell "C" 62-64. BLACK OXIDE FINISH	Note: Gage pins longer than 3 inches will be supplied on request
STANDARD ALTERATIONS

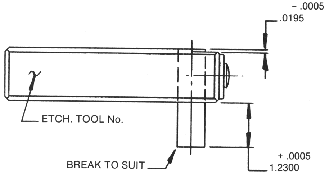

APPLICATION PART DEPTH 1.230 MIN 1.250 MAX. STEP ON BAR When drawing is required, show only the finish gring dimensions. Tracing template available.
