home : products : depth gages: Zero Depth Gage Model "AD"


Zero Depth Gage Model "AD" (For Light-weight Inspection of Small Parts) - (Full Size Tracing Template)
Federal Model
Model Min. Grad. Value Total Range Dia.
A - 1 / 2 Q .0001" .010" 0-2-0
A21 .0001" .025" 0-5-0
A3Q .0005" .050" 0-10-0
A6Q .001" .100" 0-20-0
N61 .010 mm 2.50 mm 0-50-0

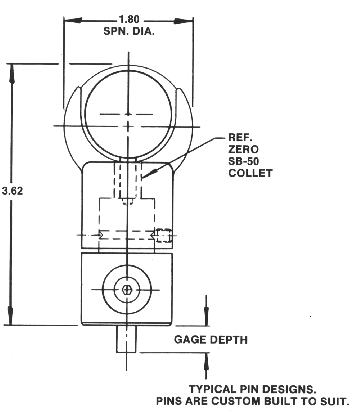

Typical Pin Designs.
Pins are custom Built to Suit.

Furnish a Print, Sketch, or Part Print.
For Fast Service, Fax it.

Zero Model "AD" is stocked as shown - less gage pin.
Gage pins are altered to suit part condition.
Specify zero model "AD".

Specify on Drawing
