home : products : center assemblies: Fixed Center Assembly

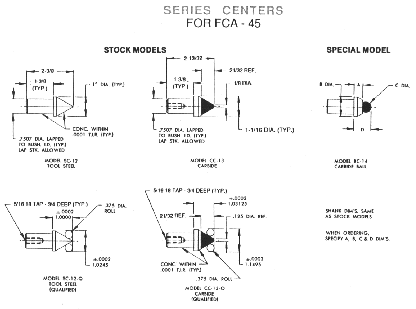

Fixed Center Assembly model no. FCA-45-D (Dowel) FCA-45-K (Key) Fixed Center Assemblies are used wherever parts have to be checked on centers; they are usually used in conjunction with a retractable center assembly. These precision standardized gaging units are ready for use and can be assembled rapidly on the job. FIXED CENTERS are available for either dowel pin or keyway locating. Alternate centers in both carbide steel and tool steel are available. "Qualified" centers are used in gaging parts that should have shoulder lengths held from dimensions over a ball.   Need an AutoCAD template? Click here for our templates section.
