Retractable Center Assembly & Series Centers

model no.
RCA-45-D (Dowel)
RCA-45-K (Key)
RETRACTABLE CENTER ASSEMBLIES are used with the Fixed Center Assembly and provide a constant spring pressure at any point of lock-up. They have a maxium of 2 1/4" of retraction.

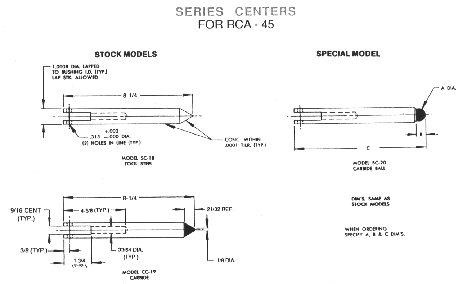

RETRACTABLE CENTERS are available for either dowel pin or keyway locating. Alternate Centers for the Retractable Center Assembly are available in both carbide and tool steel.

  Need an AutoCad template? Click here for our templates section.
